A clearer home for originals, edits, exports and the copy you can restore / BUILD 11

Make space for the work. Keep a way back.

One switched expansion route, four possible storage jobs and an external copy you can test—built around a compatible desktop you already own.

  • Expand the desktop you know
  • Clear the cache with confidence
  • Finish with a restore

Requires an existing compatible desktop, a suitable wired PCIe slot and a verified backup process. The card shares one Gen3 x8 upstream link. Check what you need ↓

Shop this bundle Why these pieces work together ↓
Explore 3 DIY project ideas ↓

6 products · 6 units · 2 premium capabilities

One Amazon selection with the planned quantities. Choose around the equipment you own.

EXPLORE THE SETUP
AI illustration of the planned one-slot media workshop; compare the original product photos for appearance.
Tap a circle to explore a product. Bundle image: AI illustration · compare original product photos
01

Expand the desktop you know

An onboard switch adds downstream drive paths through one suitable slot. Verify the host before committing to the card.

02

Clear the cache with confidence

Give temporary files their own reproducible home while originals and finished exports have deliberate locations.

03

Finish with a restore

Keep a versioned external copy and prove a small restore. Capacity and a green device icon cannot establish recoverability.

THE REASON TO BUILD IT

More than a collection
of good hardware.

A project should not become a hunt through folders when you want to edit, clear a preview cache or deliver the final version. This workshop gives each stage a place: originals to keep, a live project to change, temporary files to recreate and exports ready to hand over. The benefit is a layout you understand and can maintain.

The QNAP card supplies the PCIe switch that connects up to four NVMe drives through one suitable slot, without asking the host to split that slot into four x4 links. The separate My Book holds a software-managed backup copy. Buy the expansion route and only the drive roles you need now; leave sockets empty until the work earns them.

IMAGINE WHAT YOU COULD MAKE

Your next
DIY project.

Small inventions with a useful purpose.
Choose the idea that earns a place on your bench.

Original DIY concepts inspired by maker builds. You supply the code and validation. Shopping links open in a new tab; Amazon links are paid links.

DIY CONCEPT / 01

A project desk that outgrows one M.2 slot

Use the QNAP switched card to add a native drive path in a verified compatible desktop, starting with the 970 EVO Plus workspace or a suitable drive you own. The first result is one small project with a known storage path and a saved baseline, not four drives bought at once.

Header7F can help

PCIe config decoder Read the supplied endpoint and upstream link capabilities/status. It does not enable the switch, format drives or certify host compatibility.

An original personal desktop concept prompted by real DIY builders running out of native slots. Keep the host boot disk; no boot, NAS or measured editing-performance guarantee.

DIY CONCEPT / 02

An originals shelf with a separate preview bin

Give source files a home on the 2TB MP33 and reproducible proxies or previews a capped destination on the 1TB P300. Keep an independently verified copy of originals, then make cache cleanup a routine project action instead of a search for files worth saving.

Header7F can help

Header7F Console Keep real native-drive PCIe baselines alongside a separately maintained project-location record.

PCIe AER decoder Interpret actual host/port error messages if they occur. It cannot establish file integrity, SSD wear or the cause of an editing slowdown.

A proposed organisation workflow for desktop editing software you already own. Configure locations and capacity limits in that software; no throughput or endurance result is implied.

DIY CONCEPT / 03

A finished delivery with a way back

Keep finished packages on the 2TB P310 and create a versioned external copy on the 16TB My Book. Restore one small deliverable to a separate temporary location before trusting the routine; choose retention from actual project size and change history.

Header7F can help

Header7F Console Preserve the internal export drive’s supplied PCIe evidence with the project record. Use supported OS/backup tools for USB copying, file checks and restoration.

An original restore-first delivery idea inspired by a first-person USB backup build. No backup script, automatic scheduling, encryption recovery or guaranteed retention is supplied. The external drive is not decoded as a PCIe SSD.

Maker projects behind the ideas

These projects inspired the approach. The concepts above are Header7F adaptations, not tested reproductions of these builds.

EVERY PIECE HAS A JOB

Build the capability.
Choose your equipment.

Six distinct selections, quantity one each. The two premium roles are the switched card and 16TB external backup. Four SSD purchases are optional expansion stages; an owned compatible drive is a valid starting point. QNAP and Samsung had New marketplace offers; Crucial delivery was restricted despite its stock message. Review exact seller, condition, warranty and regional delivery on Amazon.

CorePremium capability

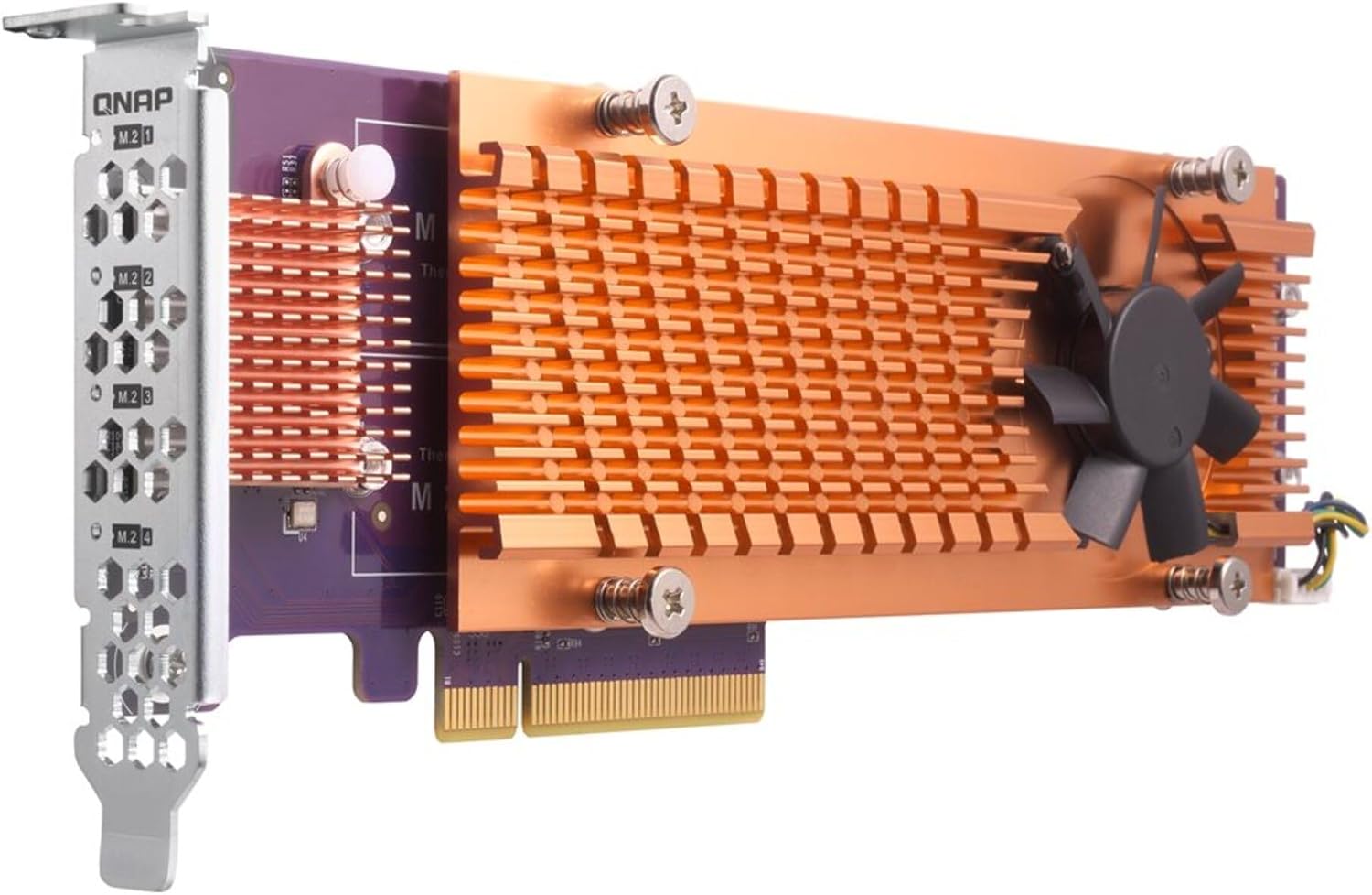

More drive paths from one suitable slot.

The onboard PCIe switch connects up to four NVMe endpoints without a four-way host split. Keep the computer you already know after checking its exact support.

Host interface
PCIe Gen3 x8
Downstream sockets
4 × M.2 2280 NVMe, Gen3 x4 each
Fit, specifications & your next check

Core expansion route. Shared Gen3 x8 upstream; host, boot disk and SSD compatibility remain prerequisites.

Before choosing itAn existing supported desktop with a usable PCIe x8 or x16 slot, bridge/NVMe-aware firmware and OS, sufficient PCIe resources, 204.95 × 68.9 × 20.6mm card clearance and cooling. Confirm exact host, SSD and firmware support with QNAP; QNAP NAS support is model-specific.

Architecture
Onboard PCIe switch; shared upstream
Cooling
Integrated heatsinks and fan

With Header7FInspect the switch and each real endpoint →

Four downstream x4 links share a Gen3 x8 upstream route. This is not four drives at their combined peak rate, a RAID controller, a boot guarantee or universal PC/NAS compatibility. Header7F reads supplied captures and does not configure the card.

Manufacturer specifications
View on Amazon paid link · check new marketplace offers

Checked 20 October 2026: no featured offer; an orderable New marketplace offer was shown. Review the exact QM2-4P-384 model, seller, new condition, warranty and delivery before ordering. No universal stock guarantee.

Expansion

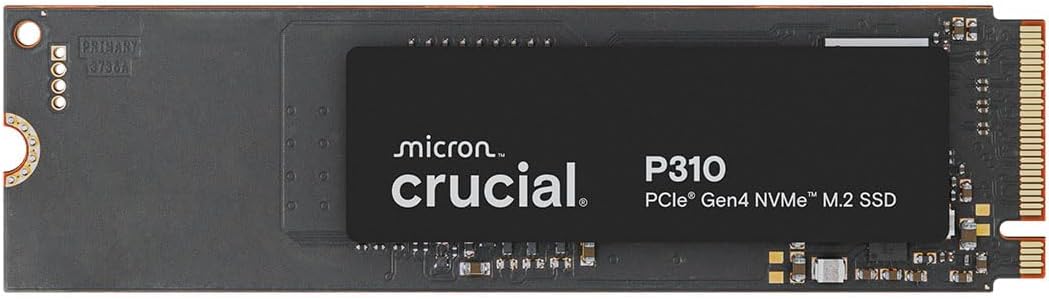

Give finished work a destination.

Use the 2TB P310 for retained exports and delivery packages, where capacity and clear organisation matter more than repeated cache rewrites.

Selected capacity
2TB, bare 2280
Native interface
PCIe Gen4 x4 NVMe
Fit, specifications & your next check

Optional expansion. QLC-family drive; Gen3 in this card. The observed Amazon delivery restriction must be checked.

Before choosing itCheck bare 2280 fit, card thermal contact, current firmware and delivery eligibility. The selected retail package is CT2000P310SSD801; manufacturer base-drive documentation uses CT2000P310SSD8.

In this card
Gen3 link limit
Write budget
440TBW for the documented 2TB P310 family

With Header7FCheck capability against the actual Gen3 link →

This QLC-family SSD runs at the card’s Gen3 limit. Headline Gen4 speed and cache behavior do not promise sustained write performance; monitor actual write volume and health in supported drive tools. It is an internal working copy, not backup.

Manufacturer specifications
View on Amazon paid link · check delivery to your location

Checked 20 October 2026: the listing said In Stock but could not ship to the checked delivery location. Confirm delivery to your own destination before including this exact 2TB bare 2280 retail package.

Expansion

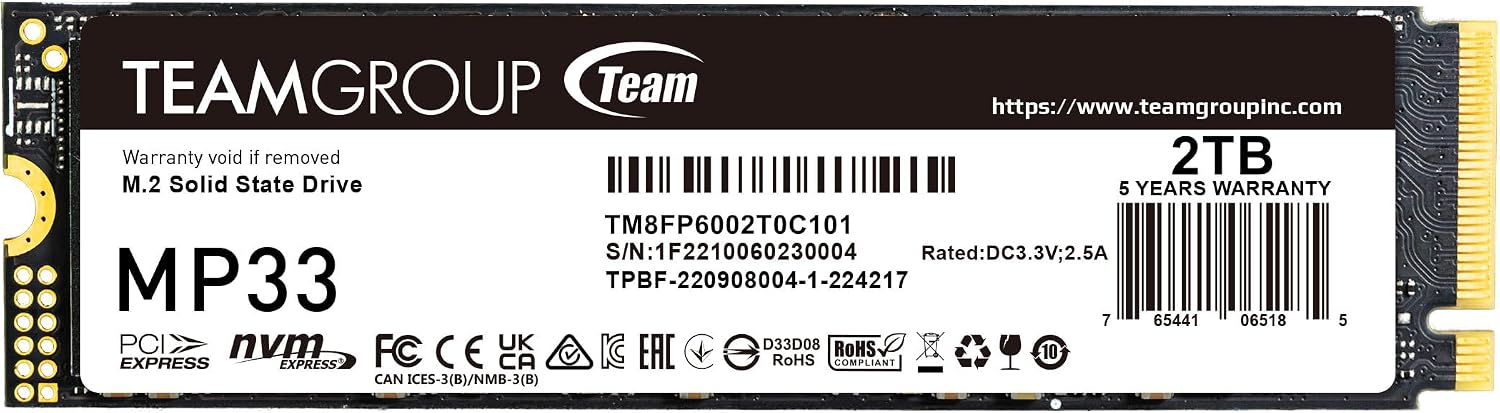

Keep originals out of the cleanup path.

A 2TB source volume gives footage, photographs and reference material a deliberate home, with a separate copy before any cleanup.

Selected capacity
2TB
Native interface
Gen3 x4 NVMe 1.3
Fit, specifications & your next check

Optional expansion. 480TBW and no DRAM cache in the manufacturer specification; do not infer editing throughput.

Before choosing itA compatible bare 2280 socket, checked card clearance/thermal installation and an independent verified copy of source files. Map the volume explicitly in the editing software.

Rated endurance
480TBW; manufacturer specification
DRAM cache
None; manufacturer specification

With Header7FSave the source drive’s PCIe baseline →

The manufacturer specifies 480TBW and no DRAM cache for this 2TB model. This selection does not promise multi-stream editing rates or improved export time. Source files still need independent backup.

Manufacturer specifications
View on Amazon paid link · confirm current offer
Expansion

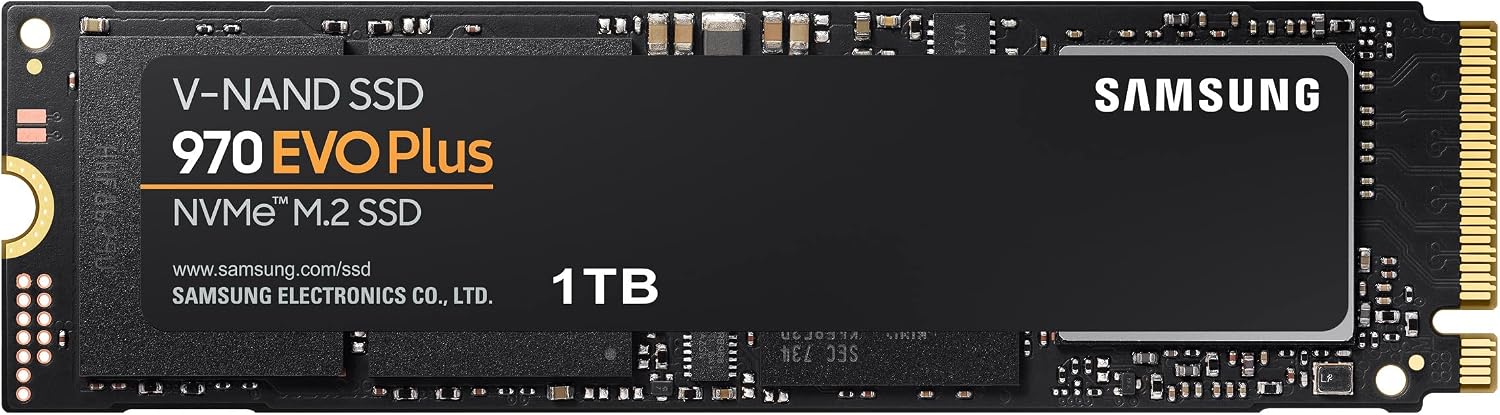

A defined home for the live project.

The 1TB 970 EVO Plus serves active project files and editing metadata, with TLC flash and a documented 600TBW client-drive rating.

Selected capacity
1TB
Native interface
Gen3 x4 NVMe 1.3
Fit, specifications & your next check

Optional expansion. Reuse an adequate existing workspace first; select the exact new marketplace condition and warranty.

Before choosing itCheck bare 2280 installation, supported firmware/OS and the actual marketplace condition and warranty. Use your existing boot disk; this plan does not depend on booting through the switch.

Flash
V-NAND 3-bit MLC / TLC
Rated endurance
600TBW; manufacturer specification

With Header7FInspect the workspace endpoint and upstream route →

Samsung specifies client-PC use, 600TBW and V-NAND 3-bit MLC (TLC) for this 1TB model. These are manufacturer ratings, not measured project performance, enterprise endurance or a file-integrity guarantee.

Manufacturer specifications
View on Amazon paid link · check new marketplace offers

Checked 20 October 2026: no featured offer; an orderable New marketplace offer was shown. Choose the exact 970 EVO Plus 1TB model and verify new condition, seller, warranty and delivery; used offers were not selected.

Expansion

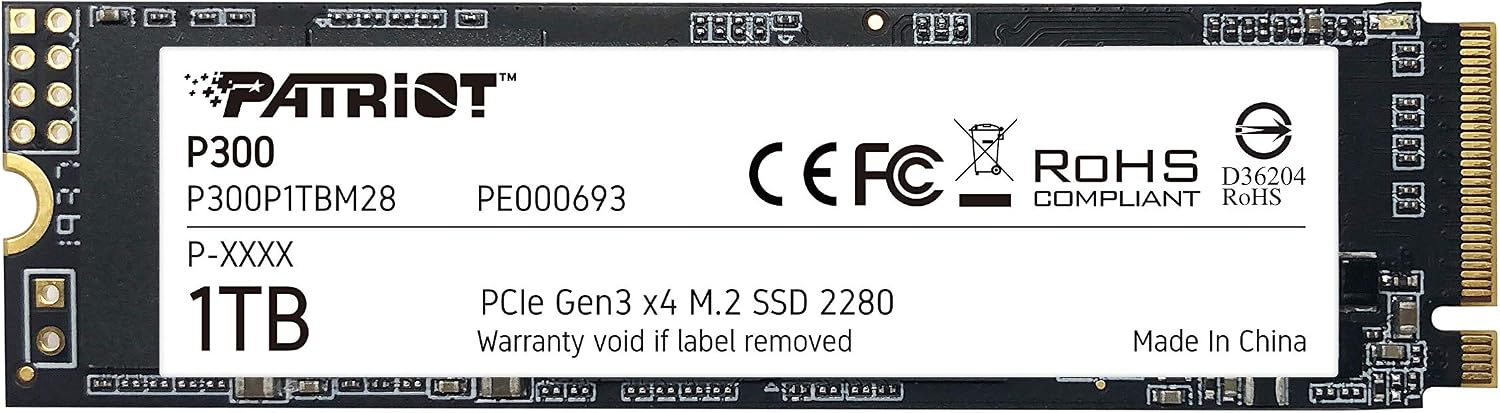

Make temporary files disposable by design.

A separate 1TB cache destination lets you recreate proxies and previews without treating them as originals or retained deliveries.

Selected capacity
1TB
Native interface
Gen3 x4 NVMe 1.3
Fit, specifications & your next check

Optional expansion. Limit cache capacity and writes; the current exact-model sheet lists 480TBW, not unlimited endurance.

Before choosing itConfirm exact P300P1TBM28 label, supported firmware/OS, bare 2280 fit and cooling. Configure a cache capacity limit and keep irreplaceable media on separately backed-up volumes.

Rated endurance
480TBW in current P300 product sheet
Role
Reproducible cache, with capacity limits

With Header7FInterpret genuine PCIe error evidence if present →

Re-creatable does not mean unlimited writes. The current manufacturer sheet rates this non-US-suffix 1TB model at 480TBW; older regional sheets differ. Header7F does not measure drive wear or prove that an AER message originated in this SSD.

Manufacturer specifications
View on Amazon paid link · confirm current offer
BackupPremium capability

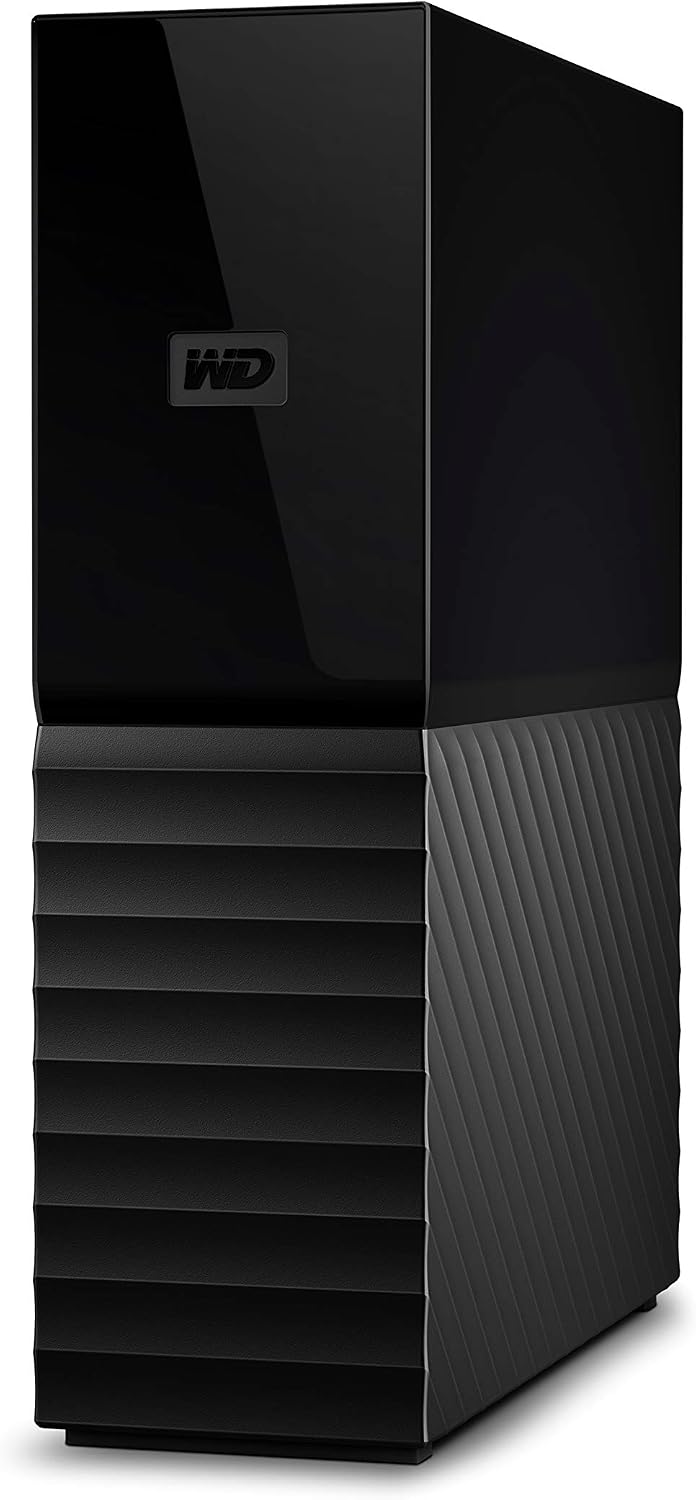

Keep the copy outside the SSD set.

The populated 16TB USB drive offers room for a versioned copy of the selected 6TB raw internal layout, subject to actual data, formatting and retention.

Selected capacity
16TB single populated drive
Host connection
USB 5Gb/s; USB-A cable supplied
Fit, specifications & your next check

Backup target. Supplied cable and power adapter belong to this purchase. Software, restore verification and offsite protection are separate decisions.

Before choosing itAn owned supported USB-A host port and a suitable regional AC outlet/adapter. Check the supplied power adapter input and plug; choose backup software compatible with your OS/filesystem and test restoration.

Power
AC adapter supplied
Role
Versioned external backup; restore test required

With Header7FKeep native-drive evidence with the separate restore record →

A single external HDD is one backup target, without RAID or offsite protection. It is not a PCIe endpoint in Header7F. Backup scheduling, file verification, encryption-key recovery and safe disconnection belong to supported OS/backup tools.

Manufacturer specifications
View on Amazon paid link · confirm current offer

YOUR FIRST USEFUL RESULT

Put the setup
to work.

One recognised NVMe path, one small project with named locations and one file restored from the external copy.

  1. 01

    Check the desktop you own

    Confirm exact QNAP card/host support, slot wiring, bridge enumeration, firmware, clearance and cooling before buying. Preserve the existing boot path.

  2. 02

    Give a small project clear locations

    Begin with one owned or selected SSD. Verify its real endpoint, then name the source, work, cache and export locations you actually need.

  3. 03

    Prove the copy comes back

    Use suitable backup software to copy a small test project to external storage, restore a file and record the result before scaling the layout.

Inspect a real NVMe link

Use your actual drive and upstream-port capture. Keep filesystem, editing performance and restore checks as separate evidence.

A CONSIDERED PURCHASE

Know what fits
before you order.

Back to your selection ↑
What do I need before choosing this setup? +
  • Existing supported personal desktop, boot disk, CPU/RAM, PSU, OS and editing software; the host is not included.
  • A suitable available x8/x16 slot, checked electrical lane allocation and card clearance, PCIe bridge/NVMe support, adequate firmware resources and cooling. An x16-shaped slot alone does not establish x8 bandwidth.
  • The card contains a PCIe switch; no x4/x4/x4/x4 host split is required by this topology. This is an inference from the manufacturer switch block diagram, not an endorsement of any unlisted motherboard.
  • Check QNAP exact card, host/NAS, SSD, firmware and physical compatibility before purchase. This selection has not been physically installed or tested.
  • Use the existing independent boot drive. SSD formatting, mount paths, editing-cache locations and versioned backup are separately configured software choices.
  • An owned supported USB-A port and regional AC connection for My Book. Its cable and power adapter are supplied; no duplicate accessories are selected.

For a suitable existing personal desktop with a free supported x8/x16 slot. The host and editing software are not included. Four distinct SSDs show a possible completed layout; reuse owned drives and add only the capacity your projects need.

What must I own before buying?

A suitable supported desktop, independent boot storage, CPU/RAM/PSU, OS and editing software, an available correctly wired x8/x16 slot with room and cooling for the card, and USB-A plus suitable regional AC power for the external drive. Confirm the exact host/card/SSD combination with QNAP; this is not a complete computer.

Does the motherboard need four-way bifurcation?

The QM2-4P-384’s onboard switch provides the fan-out, so x4/x4/x4/x4 host bifurcation is not required by this design. The host still needs appropriate slot wiring, firmware resources and PCIe bridge/NVMe support. QNAP NAS models and other platforms have their own compatibility rules.

Do I need all four SSDs, and will each run at full speed?

No. Start with compatible storage you own and add only useful capacity. The four drives serve separate proposed jobs, not a requirement to buy four brands or form RAID. Every drive shares the card’s Gen3 x8 upstream path; the Gen4 P310 falls back to Gen3. No editing-rate or combined peak-bandwidth result has been measured.

Does the external drive make my files safe automatically?

It supplies a 16TB backup target, its USB cable and AC adapter. You still choose supported backup software, versioning and retention, verify files and test restoration. One external disk adds neither RAID nor offsite protection. Header7F helps read supplied native PCIe evidence; it does not run backups, diagnose USB media or certify a restore.
